DMX control, explained
How lighting desks talk to foggers and lights.
Disclosure: We may earn a commission if you buy through links on this page. It does not change what we recommend. Affiliate Disclosure
What it is

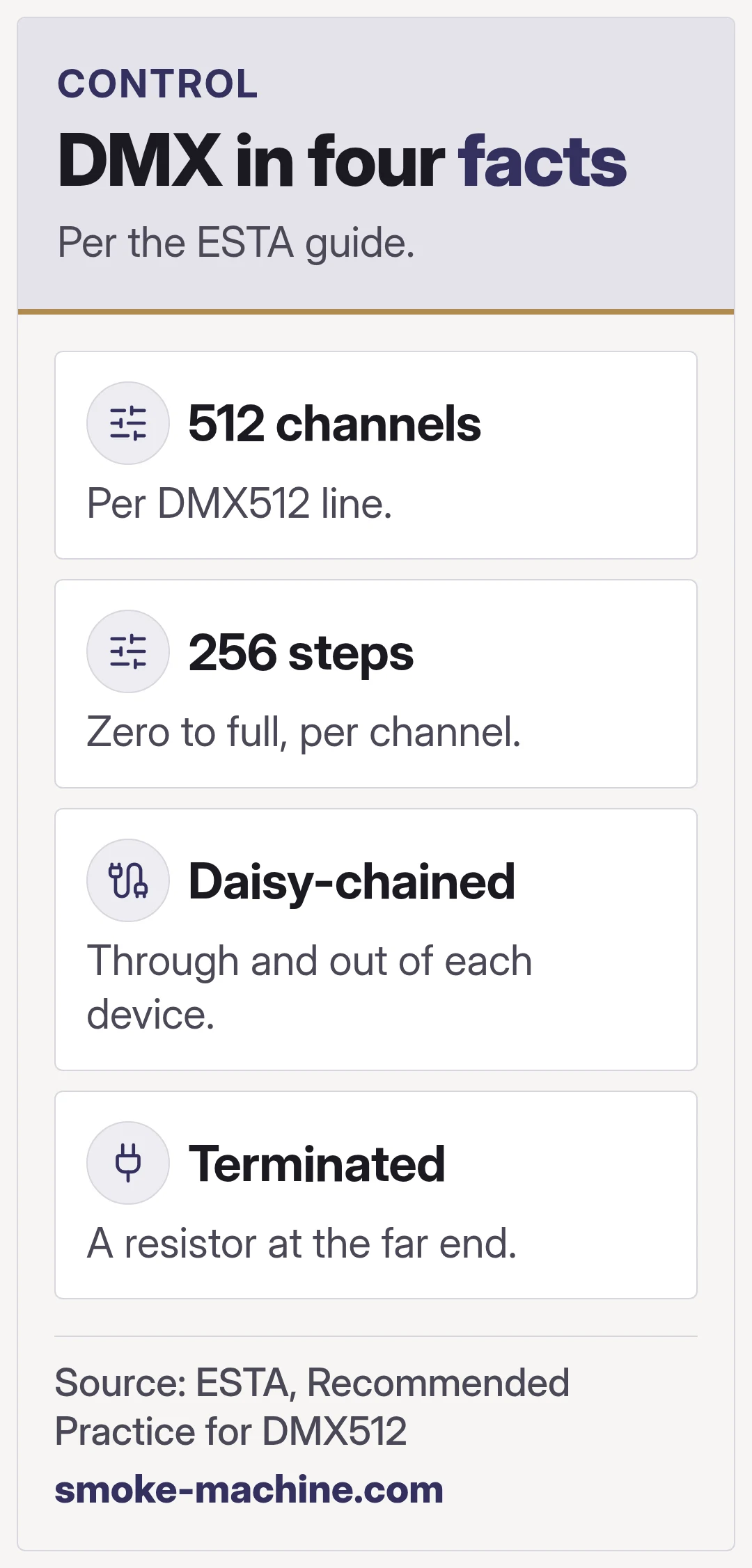

DMX512 is a control standard used for stage lighting and effects. The ESTA guide describes DMX512 as carrying up to 512 channels on one line.
Levels
The guide describes levels as a series of up to 256 steps from zero to full.
Wiring
The guide describes devices with input and pass-through connectors that can be daisy-chained, and a terminator resistor at the far end of the line. It calls missing termination probably the most common cause of problems.
For a fog machine
Which channels control what is in your machine's manual.
